Truck Bed Dimensions by Model

Truck bed dimensions directly affect what you can haul, which accessories fit, and how you use your truck daily. A two-inch difference in width can mean the difference between a pallet fitting flat or riding at an angle, and a six-inch gap in length determines whether your dirt bike's wheel hangs over the tailgate.

Here's why precise measurements matter more than just knowing "short bed" or "long bed":

• Accessory fitment: Tonneau covers, bed liners, and drawer systems are built to exact dimensions. A cover made for a 5'7" bed won't seal properly on a 5'5" bed.
• Cargo planning: Standard plywood sheets (4'x8') only fit flat in beds wider than 48" between the wheel wells. Most short beds require angling the sheet or cutting it down.
• Camping setups: If you're building a sleeping platform, you need the exact interior width and length to avoid gaps or interference with wheel wells.
• Resale and towing: Bed length affects your truck's overall wheelbase, which impacts towing stability. Longer beds generally provide better tow dynamics.
• Trade-in decisions: Understanding dimension trade-offs between cab sizes and bed lengths helps you pick the right configuration when buying new.

Manufacturers measure bed dimensions differently, too. Some quote the floor length (bulkhead to tailgate), while others measure at the top of the bed rails. Always confirm whether a spec refers to the floor measurement or the top-of-rail measurement — the difference can be 3–5 inches due to the tailgate's inward angle.

Pickup trucks come in three standard bed lengths: short bed (roughly 5'5"–5'8"), standard bed (6'4"–6'7"), and long bed (8' or more). These categories apply across all major manufacturers, though exact measurements vary by a few inches between brands.

Here's how the categories break down:

The cab-and-bed relationship is important to understand. Most manufacturers pair their largest cab (Crew Cab) with the shortest bed to keep overall vehicle length manageable for parking and maneuverability. Conversely, Regular Cab trucks usually get the longest bed option.

• Short beds are the most popular configuration, accounting for roughly 70% of full-size truck sales according to MotorTrend's pickup comparison data.
• Standard beds offer the best balance between cargo space and daily drivability.
• Long beds are increasingly rare in consumer models but remain standard for fleet and commercial trucks.

Midsize trucks add a fourth category — the compact bed at roughly 5'0"–5'2" — found on trucks like the Tacoma and Colorado with crew cabs.

The Ford F-150 offers three bed lengths: 5'7", 6'7", and 8'. The F-150's beds are among the widest in the full-size segment, with 50.6 inches between the wheel wells on all configurations — wide enough for a standard pallet to fit flat.

Ford's Super Duty line (F-250 and F-350) uses different bed dimensions than the F-150, despite sharing a similar visual profile:

• F-250/F-350 Short Bed: 6'9" length, 50.5" between wheel wells
• F-250/F-350 Long Bed: 8'2" length, 50.5" between wheel wells
• Depth: 20.0" on both configurations — slightly shallower than the F-150

A key detail for F-150 owners: the 5.5-ft bed with a Crew Cab is by far the most common configuration sold. If you're buying bed mats or liners, most aftermarket products default to this size. Ford publishes detailed bed specs in their F-150 model comparison page, which is worth bookmarking when shopping for accessories.

The F-150's consistent 50.6" wheel-well width across all bed lengths makes accessory shopping simpler — a VEVOR adjustable cargo bar set to the same width works regardless of which bed length you have.

The Chevrolet Silverado 1500 and GMC Sierra 1500 share identical bed dimensions across their three configurations: 5'8", 6'7", and 8' beds. The key difference from the F-150 is Chevy's slightly wider between-wheel-well measurement of 51.0 inches on the short bed — though this narrows on longer configurations.

A few things to note about GM's truck bed design:

• Corner steps: The Silverado has integrated corner steps cut into the rear bumper, which don't affect interior bed dimensions but do change tailgate clearance.
• CarbonPro bed: Higher-trim Sierra Denali models offer a carbon fiber composite bed that's 62 pounds lighter. Dimensions are identical but the surface is significantly more dent-resistant.
• Multi-Flex tailgate: The Sierra's six-function tailgate extends usable bed length by up to 15.9 inches when folded down — a significant advantage for hauling long materials.

For the Silverado HD (2500/3500), bed options are 6'9" and 8'2", with a between-wheel-well width of 51.0". The HD beds are also 1.5 inches deeper than the 1500 models, providing more volume for bulk cargo.

If you need to maximize every inch of a Silverado's bed space, drawer storage systems designed for GM trucks mount to the exact 51" well spacing and leave the upper bed area open for large items.

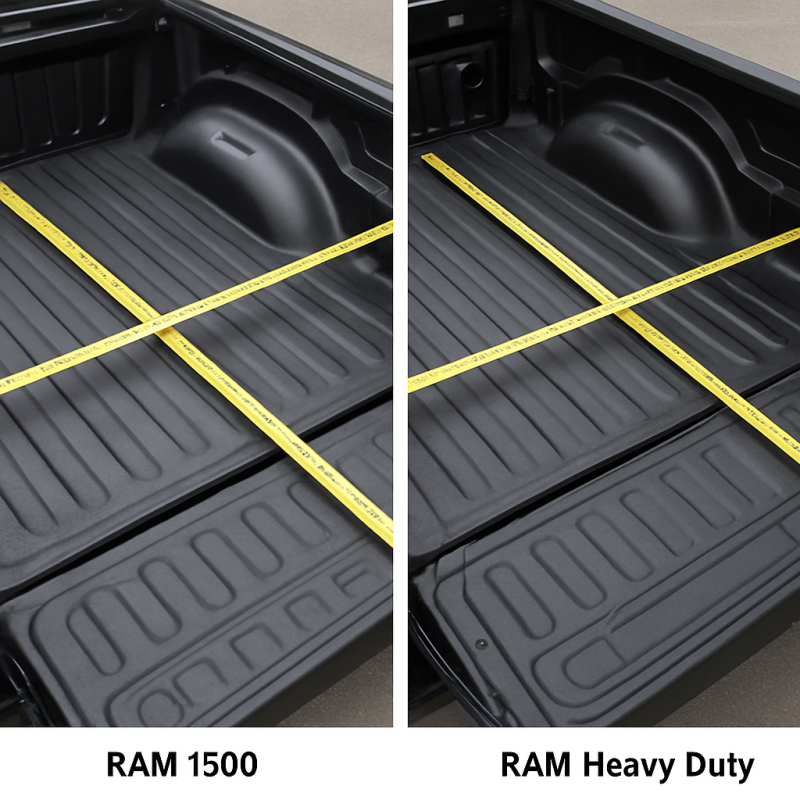

The Ram 1500 stands out with the widest between-wheel-well measurement of any full-size truck at 51.0 inches — tied with the Silverado but paired with a wider overall bed at the rails. Ram offers two bed lengths on the 1500: 5'7" and 6'4", with no 8-foot option on the half-ton model.

Ram's standout feature is the RamBox cargo management system — lockable, drainable storage compartments built into the bed rails. However, RamBox-equipped trucks have a slightly narrower usable bed width at the rail level, though the floor width between wheel wells remains unchanged.

• RamBox impact: Reduces rail-to-rail width by approximately 6 inches but adds 7.2 cubic feet of sealed storage per side
• Bed depth: At 20.3", Ram's beds are 1 inch shallower than Ford and Chevy — worth noting if you haul loose materials like mulch or gravel
• Multifunction tailgate: Ram's split tailgate opens 60/40 or swings open like barn doors, giving better access in tight spaces

The Ram 2500 and 3500 Heavy Duty models offer 6'4" and 8' beds, with the same 51" wheel-well width. The 8-foot bed on a Ram HD with Mega Cab creates one of the longest pickups on the road at over 260 inches — plan your parking accordingly.

Ram's bed dimensions are published in detail on the Ram 1500 comparison tool, which lets you toggle between configurations side-by-side. For camping in a Ram bed, the 67.4" floor length on the short bed accommodates most truck bed air mattresses designed for full-size pickups.

Toyota and Nissan cover both the midsize and full-size segments. The Toyota Tundra competes with the Big Three's half-tons, while the Tacoma leads the midsize market. Nissan's Titan rounds out the full-size options, and the Frontier competes in the midsize space.

Toyota Tundra bed dimensions:

The Tundra's 49" wheel-well width is 2 inches narrower than Ford and Ram — a meaningful difference when fitting pallets or 4x8 sheet goods.

Toyota Tacoma bed dimensions:

• 5'1" Short Bed: 60.5" length, 41.5" between wheel wells, 18.6" depth
• 6'2" Long Bed: 73.7" length, 41.5" between wheel wells, 18.6" depth

Nissan Titan bed dimensions:

• 5'7" Short Bed: 67.0" length, 50.7" between wheel wells, 21.0" depth
• 6'7" Standard Bed: 78.7" length, 50.7" between wheel wells, 21.0" depth

The Titan's dimensions are remarkably close to the F-150's. Nissan designed the Titan to accept many accessories built for the domestic full-size segment, which is reflected in parts like the Titan-specific bed cleat tie-down anchors that bolt directly into the factory rail system.

Nissan Frontier bed dimensions:

• 5'0" Short Bed: 59.5" length, 42.2" between wheel wells, 18.0" depth
• 6'1" Long Bed: 73.3" length, 42.2" between wheel wells, 18.0" depth

Midsize trucks sacrifice about 8–10 inches of width between the wheel wells compared to full-size models. This limits options for slide-out trays and other wide-format accessories.

Measure your truck bed yourself rather than relying solely on manufacturer specs. Factory dimensions represent nominal measurements that may not account for spray-in liners, bed rail caps, or aftermarket modifications that reduce usable space.

Here's how to take accurate measurements:

1. Length (floor): Measure from the inside face of the bulkhead (front wall) to the inside face of the closed tailgate, along the bed floor. Keep the tape measure flat against the floor.
2. Length (top of rail): Measure from the top of the front bed rail to the top of the tailgate. This measurement is typically 3–5 inches longer than the floor measurement.
3. Width (between wheel wells): Measure the narrowest point between the two wheel-well intrusions. This is your most critical dimension for cargo and accessories.
4. Width (inside rails): Measure between the inner faces of the bed rails at the widest point, above the wheel wells.
5. Depth: Measure from the top of the bed rail straight down to the bed floor. Do this in several spots — the depth may vary slightly front to back.

Common mistakes to avoid:

• Measuring over a bed liner: Spray-in liners add 1/8"–1/4" to the floor, reducing depth. Drop-in liners can reduce width by up to 2 inches.
• Ignoring the tailgate angle: Most tailgates angle inward at the bottom, reducing usable floor length by 1–2 inches near the tailgate.
• Forgetting about bed rail caps: Aftermarket caps that sit on top of the rails can reduce the effective opening width.

Once you have accurate measurements, use them when shopping for truck bed tents, tonneau covers, and cargo management systems. Even a half-inch discrepancy can mean the difference between a perfect fit and a return.

Nearly every truck bed accessory is dimension-specific, but some are more sensitive to exact measurements than others. Understanding which accessories require precision fitment helps you avoid costly mistakes.

Dimension-critical accessories (must match your exact bed size):

• Tonneau covers: Both hard and soft covers are built to specific bed lengths. A 5'7" cover will not fit a 5'8" bed — even one inch matters for weatherproofing.
• Drop-in bed liners: Molded to the exact contours of each truck model and bed length. Universally the worst accessory to buy in the wrong size.
• Bed drawers and storage systems: Built to match specific floor dimensions and wheel-well spacing. A system designed for a Silverado won't mount properly in a Ram.
• Bed slides and trays: Must clear wheel wells and match floor width precisely.

Dimension-flexible accessories (adjustable or universal fit):

• Cargo bars: Adjustable-width bars like the VEVOR cargo stabilizer bar telescope from 40" to 73", fitting nearly any truck bed width.
• Cargo nets: Stretch to fit most bed sizes, though oversized nets in short beds create slack that reduces effectiveness.
• Bed mats: Universal mats can be trimmed to fit, though model-specific mats provide better coverage.
• Air mattresses: Most truck bed mattresses are designed for full-size short beds (roughly 66"–68" long). Midsize truck owners should measure carefully before buying.

As a rule of thumb, the between-wheel-well width is the dimension that causes the most accessory compatibility issues. If you remember only one number about your truck bed, make it that one. Resources like the F150Forum and similar truck-specific communities maintain detailed measurement threads with real-world photos showing exactly where to measure.
